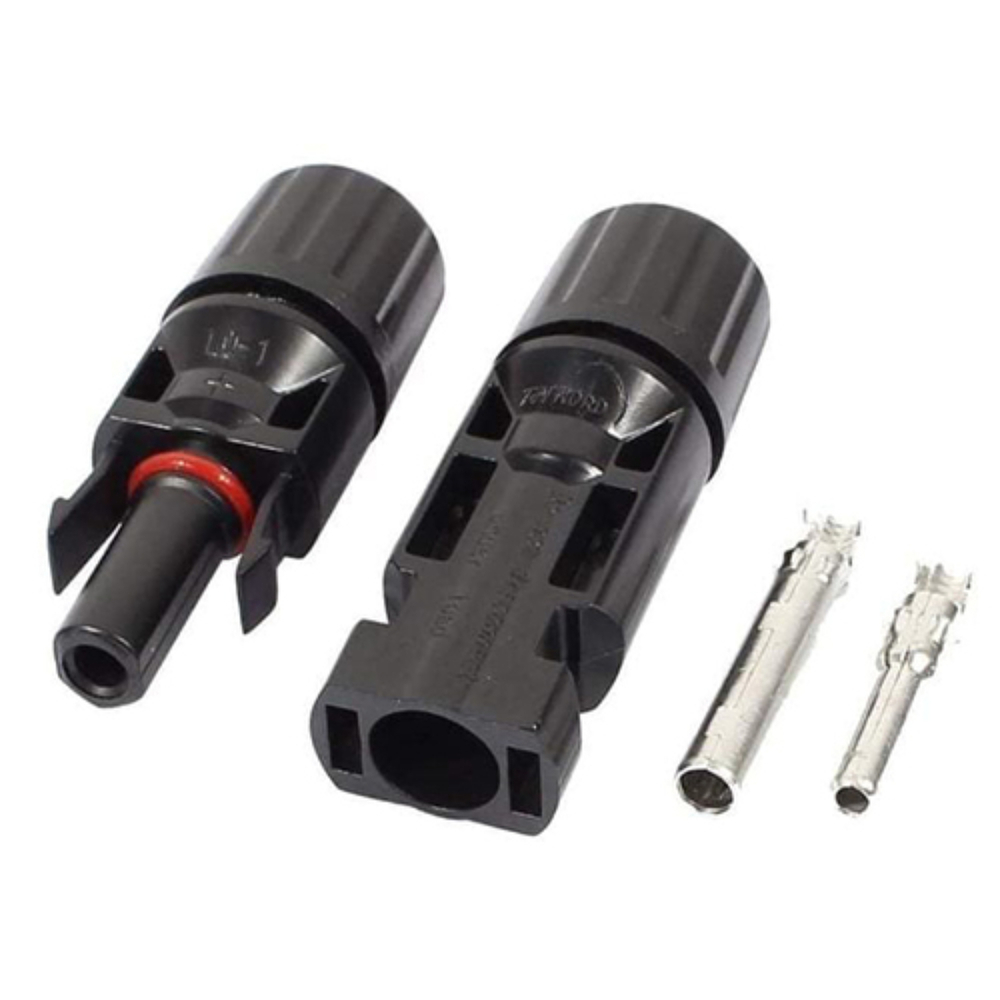

MC4 Connector

Get a Price/Quote

MOQ : 100 Pieces

MC4 Connector Specification

Diameter
Compatible with 4mm contact pins

Insulation
10^14 cm

Locking Type
Snap-in Lock

Dielectiric Strength
>6000V DC, 1min

Operating Temperature
-40C to +85C

Rated Temperature
-40C to +85C

Number of Conductor
1

Install Type
Crimp Connection, Snap-in Lock

Tensile Strength
>50N

Conductor Type
Stranded

Core Number
1

Weight
Approx. 23g per pair

Conductor Shape
Round

Core Material
Copper

Usage & Applications
Used for photovoltaic modules, solar cable interconnection

Impedance
Not Specified (Not critical for DC PV applications)

Features
UV Resistance, Waterproof, Easy Locking, Flame Retardant, High Mechanical Strength, Quick & Reliable Connection

Cable Type
PV Solar Cable

Product Type
MC4 Solar Connector

Length
Customizable (commonly 220mm cable included)

Voltage
Rated up to 1000V DC

Insulation Material
PPE/PA (Polypropylene/Polyamide)

Application
Solar Panel Connections, PV Systems, Solar Power Plants

Conductor Material
Tinned Copper

Jacket Material
PPO (Polyphenylene Oxide)

Storage Temperature
-40C to +85C

Connector Color
Black

Shield Material
None (Non-shielded)

Jacket Color
Black

Dimension (L*W*H)
Approx. 56mm x 18mm x 18mm (per connector)

Material
PPO, PA, Copper

Color
Black

Size
For 2.5mm2 / 4mm2 / 6mm2 PV cables

Wire Strip Length
8~10mm

Compatible Cable Size
2.5mm2, 4mm2, 6mm2

Standard
IEC 62852, EN 50521

Rated Current
30A (for 4mm2 cable)

Contact Resistance
0.5 m

Protection Class
IP67 (Waterproof and Dustproof)

Contact Material
Copper, Tin-plated

Mating Cycles
>500 Times (Durability)

Flame Class
UL94-V0

Approvals/Certification
TUV, CE Certified

MC4 Connector Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About MC4 Connector

Jump on the prodigious opportunity to secure savings with India's champion MC4 Connector! Engineered for incomparable reliability, this waterproof and dustproof IP67 connector is your last chance to experience premium performance in solar panel and PV system interconnections. Boasting a rated current of 30A, flame class UL94-V0, and approvals from TUV and CE, this connector features quick-locking, high mechanical strength, and UV resistance. Its contact and conductor materials (tin-plated copper) ensure enduring and reliable energy transfer in demanding environments. Don't miss this unrivaled connection solution!

Versatile Use Across Leading Industries

MC4 Connector is extensively used by solar installers, renewable energy companies, and electrical contractors for secure solar panel connections. Primarily applied in photovoltaic (PV) modules and systems, it's equally effective in solar power plants and distributed solar setups. Beyond traditional solar applications, these connectors are suited for any system requiring safe, efficient DC wiring in outdoor or rugged environments. Their compatibility with various cable sizes supports a range of installations with differing power needs.

Sample Availability, Packaging, & Competitive FOB Pricing

Sample MC4 Connectors are available to evaluate their market value and quality before a larger commitment. Each piece is securely packaged for safe transit and optimal protection. Shipments can be arranged through major Indian FOB ports, balancing freight economy and speed. As a trusted retailer, supplier, trader, and wholesaler, we are committed to offering the lowest price for bulk orders without compromising certification and safety. Contact us today for tailored pricing and swift delivery options.

FAQ's of MC4 Connector:

Q: How does the MC4 Connector ensure protection in outdoor environments?

A: The MC4 Connector meets the IP67 standard, providing superior protection against water and dust ingress, making it ideal for outdoor solar installations and adverse weather conditions.

Q: What cable sizes and types are compatible with this MC4 Connector?

A: This connector supports PV solar cables with sizes of 2.5mm2, 4mm2, and 6mm2, using round, stranded, tinned copper conductors for maximum flexibility and reliability.

Q: What certifications and approvals does the MC4 Connector carry?

A: It is certified to TUV and CE standards and manufactured in compliance with IEC 62852 and EN 50521, ensuring quality, reliability, and safety in solar applications.

Q: How many times can the MC4 Connector be connected and disconnected?

A: The connector is designed for over 500 mating cycles, guaranteeing long-term durability and stable connections in repetitive maintenance scenarios.

Q: What is the process for installing or connecting the MC4 Connector?

A: Installation involves stripping the wire (8-10mm), inserting it into the connector, crimping for secure contact, and finally snapping the connectors together for a quick, secure locking connection.

Q: What are the key benefits of using this MC4 Connector for solar PV systems?

A: The MC4 Connector delivers high mechanical strength, UV and flame resistance, easy locking, and reliable current transfer-making it an optimal, secure choice for efficient solar power connectivity.
